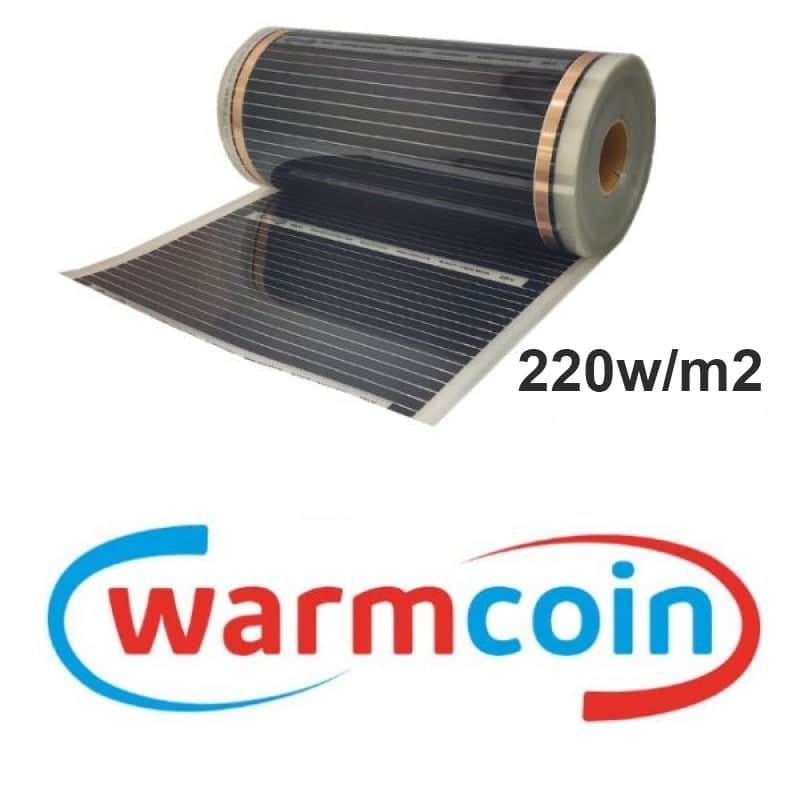

Warmcoin film heated floor by meters, South Korea Transparent 220W/m²
Product price per linear meter
12,00€ – 19,00€
Warmcoin film heated floor, South Korea 220W/m² with a high carbon coverage infrared sheet (98%). Advanced technology and easy installation at an affordable cost. Available in various widths to fit any space, with rolls of 50, 80, and 100 cm. Sold by meters.
SKU: WCM220 Categories: Heating film, Infrared heating film
Product information
- Free shipping on all orders over €100. For orders less than €100, the shipping price will be calculated in the cart.
- Shipping to all EU countries.
- Delivery in approximately 10 business days.
- 3 years warranty.
- Technical assistance.
- 30 days easy returns.
Specifications
- Model: Warmcoin 220
- SKU: WCM220
- Power: 220W/m2 (±10%)
- Operating Voltage: 220V
- Average Consumption: 50-80 Wh
- Film Width: 50cm / 80cm / 100cm
- Power, Watt/linear m.:
- 50cm: 90 Watt/linear m
- 80cm: 144 Watt/linear m
- 100cm: 180 Watt/linear m
- Quantity in roll, linear m.:
- 50cm: 100m
- 80cm: 90m
- 100cm: 70m
- Film Thickness: 0.338 mm
- Max. Operating Temperature: Between 38 and 42°C
- Max. Melting Point: Between 80 and 90°C
- Material: Laminated Film (PET), Carbon, Silver, Copper
- Manufacturer’s Warranty: 3 years
- Durability: 15 years
- Advantages: Easy installation, affordable price
Product description
The Warmcoin film heated floor offers an affordable, eco-friendly, and efficient heating solution, ideal for a wide range of floor surfaces, including optimal combinations with laminate. This model is perfect for those seeking an efficient heating option without significant investment.
Cuts and Dimensions
- The film can be cut every 25 cm at designated points.
- Available in widths of 50 cm, 80 cm, and 100 cm.
- Powers: 220 W/m2 (±10%) with 90 W per linear meter for 50 cm, 140 W per linear meter for 80 cm, and 180 W per linear meter for 100 cm.
Features and Benefits
- Versatility: Suitable for both primary and supplementary heating.
- Energy Efficiency: Can reduce electricity consumption by up to 30% when used with a suitable thermostat.
- Economy and Ease of Use: Requires no specialized care and is easy to install.
- Safety and Comfort: Ensures a warm and comfortable environment, safe for health.
- Wide Applicability: Ideal for residential buildings, offices, educational, and health institutions.
Installation Materials Required
- Terminals: 2 units, can be connected in the usual way or by soldering.
- Waterproof Bituminous Tape: “IN” (30 cm).
- Thermostat: A separate thermostat is required for each room.
- Heat Reflective Pad: 3 to 5 mm for underfloor heating.
- Cables: Red and blue, suitable for the heating area (from 1.5 to 2.5 mm).
Important Note: The maximum operating length of the infrared strip should not exceed 13 meters for 50 cm wide films, 9 meters for 80 cm wide films, and 7 meters for 100 cm wide films.
The Warmcoin film heated floor is an ideal solution for achieving a warm and efficient environment, combining advanced technology and ease of installation at an affordable cost.
Film Width - Heated floor | 50 cm, 80 cm, 100 cm |
---|
