Product information
- Free shipping on all orders over €100. For orders less than €100, the shipping price will be calculated in the cart.
- Shipping to all EU countries.
- Delivery in approximately 10 business days.
- 5 years warranty.
- Technical assistance.
- 30 days easy returns.
Specifications
- Model: Warmcoin PTC-190
- SKU: PTC_190
- Power: 190W/m2 (±10%)
- Operating Voltage: 230V
- Average Consumption: 50-80 Wh
- Film Width: 50cm / 80cm / 100cm
- Quantity in roll, linear m. : 100m (50cm) / 90m (80cm) / 70m (100cm)
- Film Thickness: 0.338 mm
- Max. Operating Temperature: Between 38 and 42°C
- Max. Melting Point: Between 80 and 90°C
- Material: Laminated Film (PET), Carbon, Silver, Copper
- Manufacturer’s Warranty: 5 years
- Durability: 15 years
- Advantages: Easy installation, affordable price
Product description

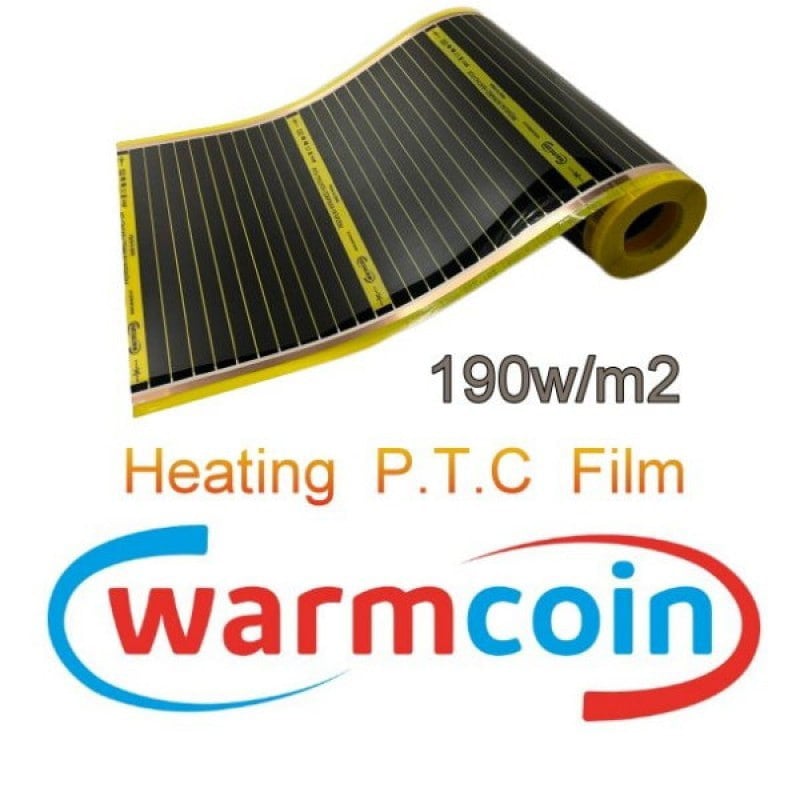

The Warmcoin PTC film heated floor 190W/m² is an innovative, efficient, and affordable heating solution, designed to adapt to any floor surface and especially effective with laminate. This model is ideal for those seeking an eco-friendly and efficient heating system.
PTC (Positive Temperature Coefficient) coefficient of 30%! It allows, after surpassing the temperature threshold, to reduce power and heat emission. Overheat protection!
Features and Benefits
- Cut Flexibility: Can be cut every 25 cm at designated points, adapting to space needs.
- Energy Efficiency: Can reduce electricity consumption by up to 30% when used with a suitable thermostat.
- Versatility: Suitable for both primary and supplementary heating.
- Easy Installation and Use: Requires no specialized care and is easy to install, safe for health.
- Applicability: Ideal for residential buildings, offices, educational, and health institutions.
Advanced PTC Technology
- Enhanced Safety: PTC resistance increases with temperature, reducing the risk of overheating and deformation.
- Energy Saving: Reduces energy consumption as the film’s temperature increases, protecting against overheating.
Dimensions and Power
- Available Widths: 50 cm, 80 cm, and 100 cm.
- Power: 190 W/m2 (±10%)
- Power, Watt/linear m. max | min:
- 50 cm: 95 | 67
- 80 cm: 152 | 106
- 100 cm: 190 | 133
Installation Materials Required
- Terminals: 2 units, can be connected in the usual way or by soldering.
- Waterproof Bituminous Tape: “IN” (30 cm).
- Thermostat: One required for each room.
- Heat Reflective Pad: 3 to 5 mm for underfloor heating.
- Cables: Red and blue, thickness according to heating area (from 1.5 to 2.5 mm).
Important Note: The maximum operating length of the infrared strip should not exceed 13 meters for 50 cm wide films, 9 meters for 80 cm wide films, and 7 meters for 100 cm wide films.
The Warmcoin PTC film heated floor 190W/m² is an ideal choice for creating a warm and efficient environment, combining advanced technology and ease of installation at an affordable cost.
| Weight | N/A |
|---|---|
| Film Width - Heated floor | 50 cm, 80 cm, 100 cm |
Mounting Kit that may interest you

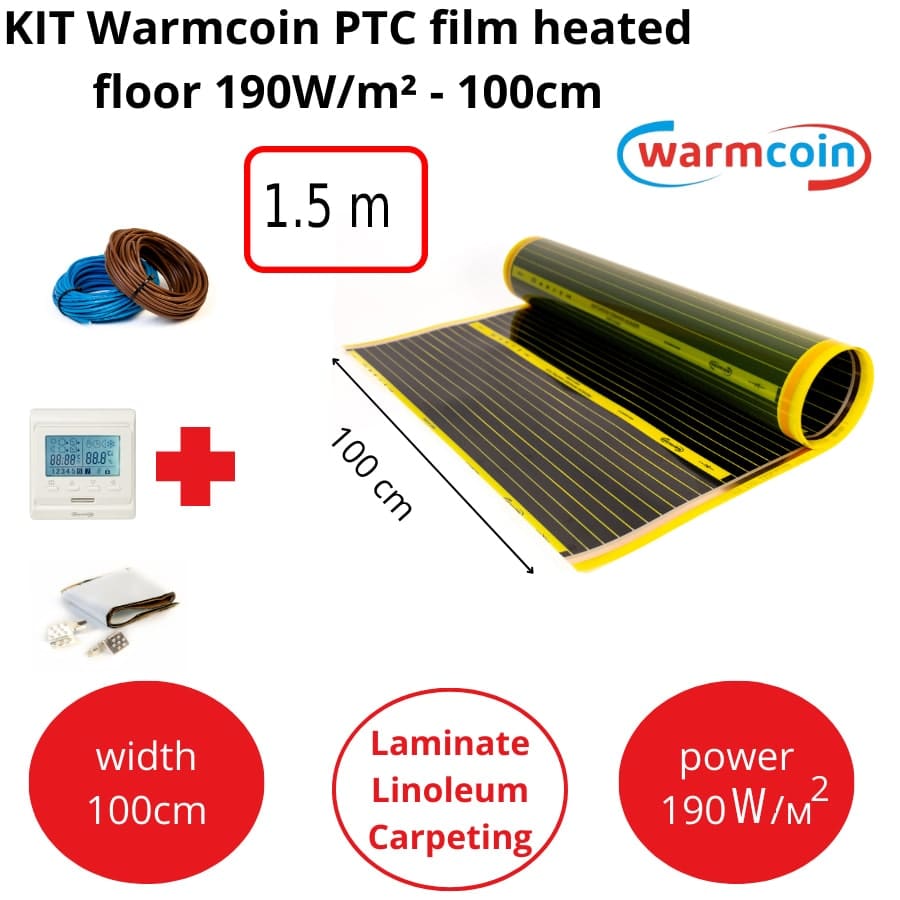

KIT Infrared Heating film Warmcoin PTC yellow 190W/m² with W70 Thermostat White63,50€ – 421,50€
Film Width - Heated floor: 50 cm, Film Length - Heated floor: 8m
KIT Heating mat Warmcoin two-core 160Wm2 + Warmcoin W100 wifi Thermostat83,00€ – 276,00€
Area, m2 - Heating Mats: 12 m2, Thermostat color kit: White
KIT Infrared Heating film Warmcoin Milky 180 W/m² with W51 Wifi Thermostat Black91,00€ – 410,50€
Film Width - Heated floor: 100 cm, Film Length - Heated floor: 15m
KIT Heating mat Warmcoin two-core 160Wm2 + Warmcoin W51 Thermostat57,00€ – 247,00€
Area, m2 - Heating Mats: 1 m2, Thermostat color kit: White
KIT Infrared Heating film Warmcoin Transparent 220W/m² with W51 Wifi Thermostat Black86,50€ – 365,50€
Film Width - Heated floor: 50 cm, Film Length - Heated floor: 10m

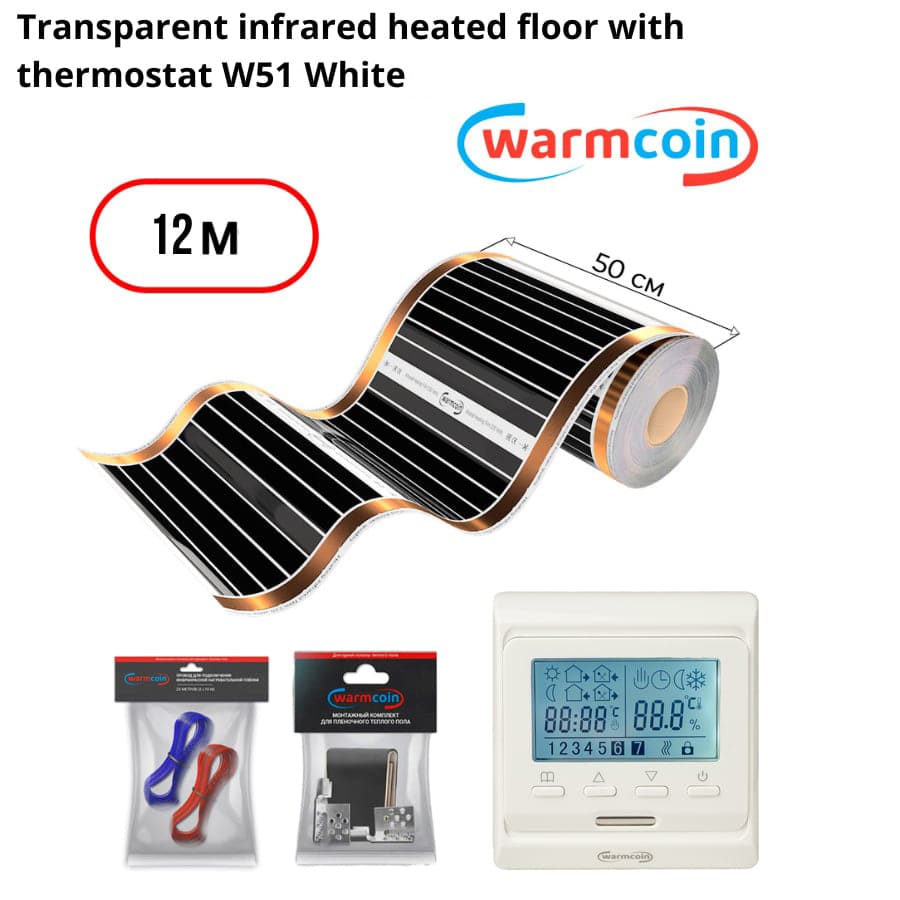

KIT Infrared Heating film Warmcoin Transparent 220W/m² with W51 Wifi Thermostat White77,50€ – 356,50€
