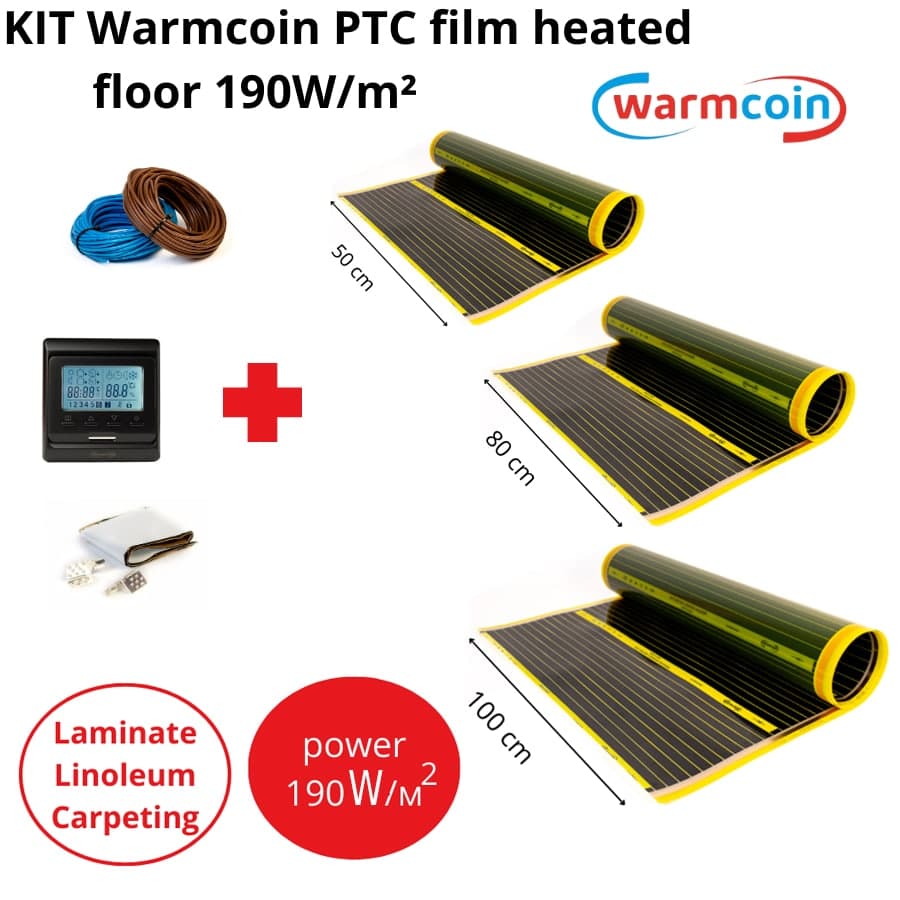

    Infrared Heating Film Warmcoin PTC 190W/m² + Installation Kit + W51 Thermostat Black

    (3 customer reviews)

    Product price

    67,92€ – 367,92€

    Infrared Heating Film Warmcoin PTC 190W/m², Installation Kit and W51 Thermostat Black, featuring high-coverage carbon infrared film (98%). Incorporates advanced technology and is easy to install at an affordable cost. Available widths: 50cm, 80cm and 100cm.

    SKU: PL+TERM_PTC_190_W51_CPL_B Categories: , Brand:

    Add this product to your budget list. From there, you can review the selected items and submit your personalized budget request.

    Add to quote

    Product information

    • Free shipping on all orders over €100. For orders less than €100, the shipping price will be calculated in the cart.
    • Shipping to all EU countries.
    • Delivery in approximately 10 business days.
    • 5 years warranty.
    • Technical assistance.
    • 30 days easy returns.
    (3 customer reviews)

    Specifications

    • Model: Warmcoin PTC-190
    • Power: 190W/m2 (±10%)
    • Operating Voltage: 220V
    • Average Consumption: 50-80 Wh
    • Film Width: 50cm / 80 cm / 100 cm
    • Power, Watt/linear m.:
      • For 50 cm: 95 W per linear meter
      • For 80 cm: 150 W per linear meter
      • For 100 cm: 190 W per linear meter
    • Film Thickness: 0.338 mm
    • Max. Operating Temperature: Between 38 and 42°C
    • Max. Melting Point: Between 80 and 90°C
    • Material: Laminated Film (PET), Carbon, Silver, Copper
    • Manufacturer’s Warranty: 5 years
    • Durability: 15 years
    • Advantages: Easy installation, affordable price

    Product description

    The Warmcoin PTC 190W/m² infrared heating film offers an affordable, eco-friendly, and efficient heating solution, ideal for a wide range of floor surfaces, including optimal combinations with laminate. This model is perfect for those seeking an efficient heating option without significant investment.

    Cuts and Dimensions

    • The film can be cut every 25 cm at designated points.
    • Power: 190 W/m2 (±10%) with 95 W per linear meter for 50 cm / 150 W per linear meter for 80 cm / 190 W per linear meter for 100 cm.

    Features and Benefits

    • Versatility: Suitable for both primary and supplementary heating.
    • Energy Efficiency: Can reduce electricity consumption by up to 30% when used with a suitable thermostat.
    • Economy and Ease of Use: Requires no specialized care and is easy to install.
    • Safety and Comfort: Ensures a warm and comfortable environment, safe for health.
    • Wide Applicability: Ideal for residential buildings, offices, educational, and health institutions.

    Materials included in the kit

    • Infrared Heating Film Warmcoin PTC, 190W/m², available in various lengths (meters) depending on the width of the film:
      • Width 50 cm: 3, 4, 5, 6, 8, 10, 12, 15m
      • Width 80 cm: 2, 3, 7, 10, 15m
      • Width 100 cm: 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 15m
    • Crimp connector: different quantities depending on the chosen kit. They can be connected conventionally or by soldering.
    • Double insulated connecting cable: quantities vary based on the selected kit.
    • Thermostat: W51 Thermostat Black



    Important Note: The maximum operational length of the sheet must not exceed 13 meters for 50 cm wide sheets, 9 meters for 80 cm wide sheets and 7 meters for 100 cm wide films.

    The Warmcoin PTC 190W/m² infrared heating film is an ideal solution for achieving a warm and efficient environment, combining advanced technology and ease of installation at an affordable cost.

    Weight N/A
    Film Width - Heated floor

    50 cm, 80 cm, 100 cm
    Film Length - Heated floor

    1,5m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 10m, 12m, 15m
