Product information
- Free shipping on all orders over €100. For orders less than €100, the shipping price will be calculated in the cart.
- Shipping to all EU countries.
- Delivery in approximately 10 business days.
- 5 years warranty.
- Technical assistance.
- 30 days easy returns.
Specifications
- Model: Warmcoin PTC-190
- Power: 190W/m2 (±10%)
- Operating Voltage: 220V
- Average Consumption: 50-80 Wh
- Film Width: 50cm / 80 cm / 100 cm
- Power, Watt/linear m.:
- For 50 cm: 95 W per linear meter
- For 80 cm: 150 W per linear meter
- For 100 cm: 190 W per linear meter
- Film Thickness: 0.338 mm
- Max. Operating Temperature: Between 38 and 42°C
- Max. Melting Point: Between 80 and 90°C
- Material: Laminated Film (PET), Carbon, Silver, Copper
- Manufacturer’s Warranty: 5 years
- Durability: 15 years
- Advantages: Easy installation, affordable price
Product description
The Warmcoin PTC 190W/m² infrared heating film offers an affordable, eco-friendly, and efficient heating solution, ideal for a wide range of floor surfaces, including optimal combinations with laminate. This model is perfect for those seeking an efficient heating option without significant investment.
Cuts and Dimensions
- The film can be cut every 25 cm at designated points.
- Power: 190 W/m2 (±10%) with 95 W per linear meter for 50 cm / 150 W per linear meter for 80 cm / 190 W per linear meter for 100 cm.
Features and Benefits
- Versatility: Suitable for both primary and supplementary heating.
- Energy Efficiency: Can reduce electricity consumption by up to 30% when used with a suitable thermostat.
- Economy and Ease of Use: Requires no specialized care and is easy to install.
- Safety and Comfort: Ensures a warm and comfortable environment, safe for health.
- Wide Applicability: Ideal for residential buildings, offices, educational, and health institutions.

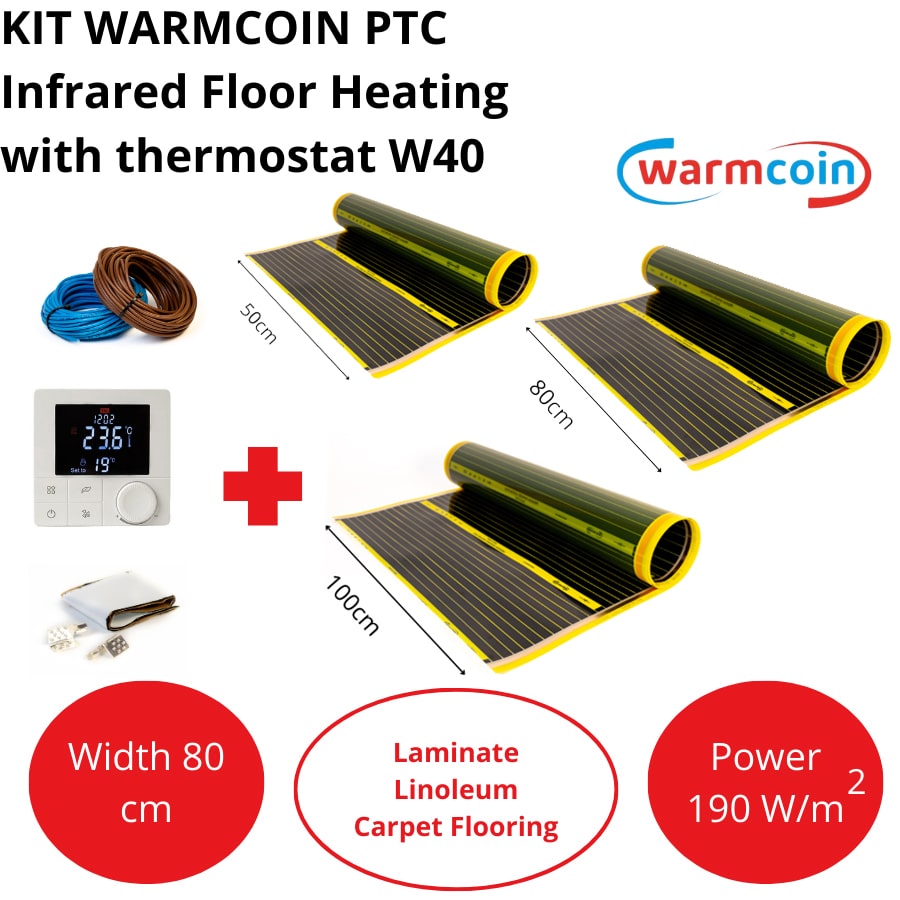

Materials included in the kit
- Infrared Heating Film Warmcoin PTC, 190W/m², available in various lengths (meters) depending on the width of the film:
- Width 50 cm: 3, 4, 5, 6, 8, 10, 12, 15m
- Width 80 cm: 2, 3, 7, 10, 15m
- Width 100 cm: 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 15m
- Crimp connector: different quantities depending on the chosen kit. They can be connected conventionally or by soldering.
- Double insulated connecting cable: quantities vary based on the selected kit.
- Thermostat: W40 Thermostat
Important Note: The maximum operational length of the sheet must not exceed 13 meters for 50 cm wide sheets, 9 meters for 80 cm wide sheets and 7 meters for 100 cm wide films.
The Warmcoin PTC 190W/m² infrared heating film is an ideal solution for achieving a warm and efficient environment, combining advanced technology and ease of installation at an affordable cost.
| Weight | N/A |
|---|---|
| Film Width - Heated floor | 50 cm, 80 cm, 100 cm |
| Film Length - Heated floor | 1,5m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 10m, 12m, 15m |
